Equipment

UHP rental fleet. Separate ST-17 Spider line.

40,000 psi-class pumps, jetlances (dry shutoff guns), and hoses with Type M or tube and nipple terminations. 55,000 psi pumps and robots are for hire only. ST-17 baskets rent, repair, and sell as a separate access line.

For hire only

The equipment below is available for rent with technical support. ST-17 air powered Spider baskets are also sold and repaired. 55,000 psi pumps and crawler robots — magnetic or vacuum-adhered to the structure — are for hire only. Those stay with SurfaceJet on robotic projects.

Request a quote Robotic service instead

Robotic applications

55,000 psi pumps

SurfaceJet carries both vacuum and magnetic robotic equipment. 55,000 psi UHP pumps are for robot applications. These units feed crawlers that are magnetic or vacuum-adhered to the structure — hulls, tanks, and large industrial steel. 40,000 psi pumps are used for other applications. Most coatings will fracture at 36,000 psi or less, depending on coating condition and coating type.

SurfaceJet carries both vacuum and magnetic robotic equipment
55,000 psi pumps for robot applications only
40,000 psi pumps for other applications
For hire only
Paired with magnetic or vacuum-adhered crawlers, rotary tools, and vac-box recovery

Discuss a robotic project

SurfaceJet UHP crawlers, magnetic or vacuum-adhered, on a tank job

Blue vac tank connected to a vacuum hose for UHP debris recovery

For hire only

Magnetic or vacuum-adhered crawlers and 55,000 psi pumps stay with SurfaceJet. 40,000 psi-class pumps, jetlances (dry shutoff guns), hoses, and ST-17 Spider baskets remain available for rent below. Most coatings fracture at 36,000 psi or less, depending on condition and type.

01UHP rental fleet

What we rent

UHP pump systems

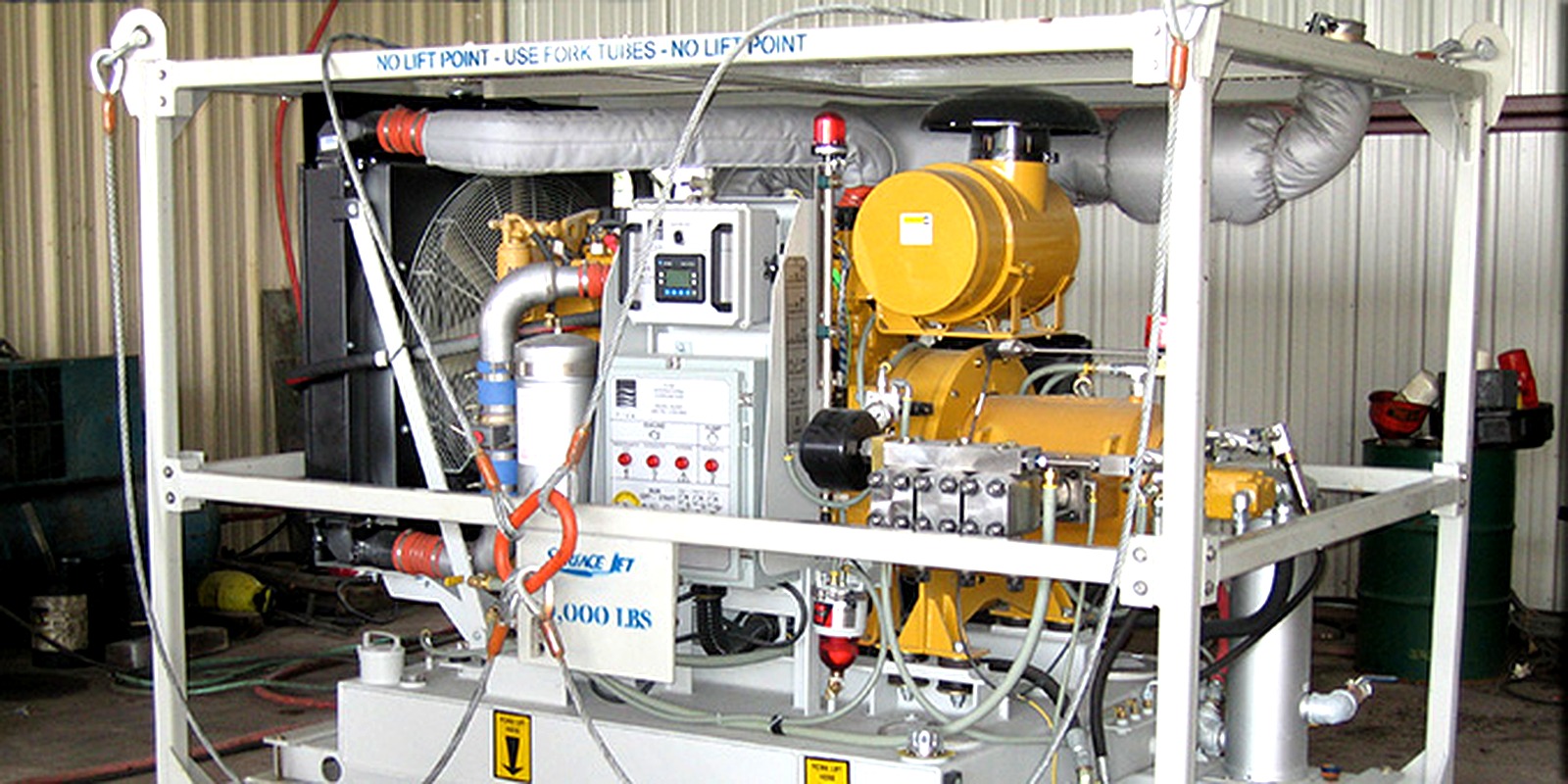

Skid-mounted 40,000 psi-class pumps for coating removal and other non-robotic work. 55,000 psi pumps are for robot applications only. Most coatings will fracture at 36,000 psi or less, depending on coating condition and coating type. Inspected, serviced, and pressure-tested before every shipment.

40,000 psi-class pumps for handheld and other non-robotic applications
55,000 psi pumps reserved for robotic applications
Most coatings fracture at 36,000 psi or less, depending on condition and type
Diesel-driven skids sized for shipyard and plant work
Gauges, safety circuits, and interlocks checked prior to dispatch

Jetlances are dry shutoff guns

Operator tools for handheld UHP work. Jetlances are dry shutoff guns: releasing the trigger stops flow at the lance. There is no dump stream at the operator. Excess water dumps at the pump through the unloader. Rotary attachments for production coating removal.

Jetlances are dry shutoff guns — no dump at the gun
Trigger release stops the jet; the pump unloader takes the flow
Rotary nozzles and orifices
Operator-side fittings and whip hoses

Hoses, fittings, and parts

UHP hose strings on reels, adapters, and consumables consigned with the spread. UHP hoses have either Type M or tube and nipple terminations.

UHP hose assemblies with Type M or tube and nipple terminations
Type M fittings or tube and nipple ends, as required
Adapters, couplings, and manifold assemblies
Whip hoses with burst shield and abrasion-guarded HP hose
Valves, orifices, and spare kits

A-3000

Model A-3000 Jetlance

Dry shutoff gun: hold both triggers to run; release and flow stops at the lance. No dump stream at the operator. Excess water dumps at the pump through the unloader.

High pressure, low water volume, and a fast rotary head. Rated to 55,000 psi. Handheld spreads typically run on 40,000 psi-class pumps. 55,000 psi pumps stay with robotic work.

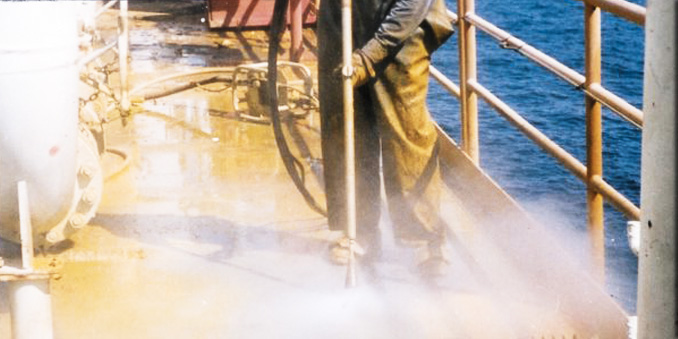

Operator using an A-3000 Jetlance dry shutoff gun — A-3000 Jetlance in use — dry shutoff gun

A-3000 Jetlance dry shutoff gun in the operator’s hands — A-3000 Jetlance — dry shutoff gun

A-3000 Jetlance in shipping crate — A-3000 ready to ship

How the spread connects

Water leaves the pump, runs a 40,000 psi hose, and feeds two A-3000 Jetlances. Each hose end is Type M female, or tube and nipple if that is what the job is spec’d. Use one termination on the whole string.

Pump

40,000 psi class, two outlets

Hose

Type M or tube and nipple

Jetlances

Two A-3000 dry shutoff guns

UHP pump

Diesel

Prime mover

Head

Two outlets

40,000 psi class

Type M

40,000 psi hose

To Jetlance 01

Type M

40,000 psi hose

To Jetlance 02

A-3000 01

Jetlance. Dry shutoff gun. Tumble box on the whip.

A-3000 02

Jetlance. Dry shutoff gun. Tumble box on the whip.

Hose ends

Standard: 40,000 psi Type M female. Alternate: tube and nipple, if the job is spec’d that way. Match pump outlet to Jetlance inlet. Do not mix ends on one string.

Pump to hose to two A-3000 Jetlances

Standard features

Dry shutoff gun — both triggers must be held; release stops flow at the lance, with no dump at the operator
Tumble box with UHP on/off valve, water separator, air lubricator, pressure gauge, regulator, and air on/off valve
15 ft (4.5 m) UHP hose and 15 ft air hose between the tumble box and the lance
Multi-orifice cleaning tips and Fanjet nozzles
Optional stem extensions: 15 in., 26 in., and 38 in. (381, 660, and 965 mm)
Optional shield, shroud, and shoulder stock

Specifications

Height: 10.5 in. (267 mm)
Width: 2.5 in. (64 mm)
Length (shortest option): 15.0 in. (381 mm)
Tool weight (excl. hose / tumble box): 11.0 lb (4.98 kg)
UHP hose length: 15 ft (4.5 m)
Pumped media: Water
Max. flow rate: 6.0 gpm (22.7 lpm)
Max. operating pressure: 55,000 psi (3,793 bar)
Air required: 32 scfm @ 90 psi (6.2 bar)
Motor: 1 hp (0.75 kW)
Air supply line: ½ in. (13 mm) ID to the tumble box

Air supply

32 scfm at 90 psi (6.2 bar). Run a ½ in. (13 mm) ID air line to the tumble box. Shut off air to the box when the tool is idle.

Safety

The A-3000 operates above 110 dBA. Operators and anyone nearby need protective clothing, eye and hearing protection, helmet, leather gloves, and steel-toe footwear with metatarsal guards. Never point the tool at a person. Keep 10 ft (3 m) of clearance. Full requirements are in Chapter 2 of M-279.

02With every UHP rental

Support that travels with the iron.

Factory-trained technicians inspect, service, and pressure-test before shipment.
Consignment of consumables and spare parts, including operator manuals and specialty tools.
Technical support while the equipment is on the job.
Optional operator and technician training so the crew is current before the pump starts.

Separate from the UHP fleet

ST-17 Spider baskets

Access equipment. ST-17 is an air powered Spider basket. It is not a robot and not a UHP crawler. Available for rent, repair, and sale, with operator training.

ST-17 training, rentals, and repairs

03Spider access — not UHP

ST-17 training, rentals, and repairs

ST-17 Air Powered Spider basket — not a robot

ST-17 Air Powered Spider baskets

ST-17 air powered Spider baskets for rent, repair, and sale, plus operator training. Suspended access — drum-hoist work cages. Not a robot and not a UHP crawler.

ST-17 air powered Spider baskets
Suspended access — not a robot
Available for rent, repair, and sale
Operator training certification available
Load-tested before shipment
Level-wind rope collection
Overload and overspeed protection on each unit

04Air powered ST-17 support

Load-tested. Operator certified.

Factory-trained technicians inspect, service, and load-test before shipment.
Operator training certification available.
Units available for rent, repair, and sale.
Technical support while the basket is on the job.

Next step

Need a rental spread?

Tell us the pressure, number of jetlances, hose length, and access needed. We will size the equipment.
